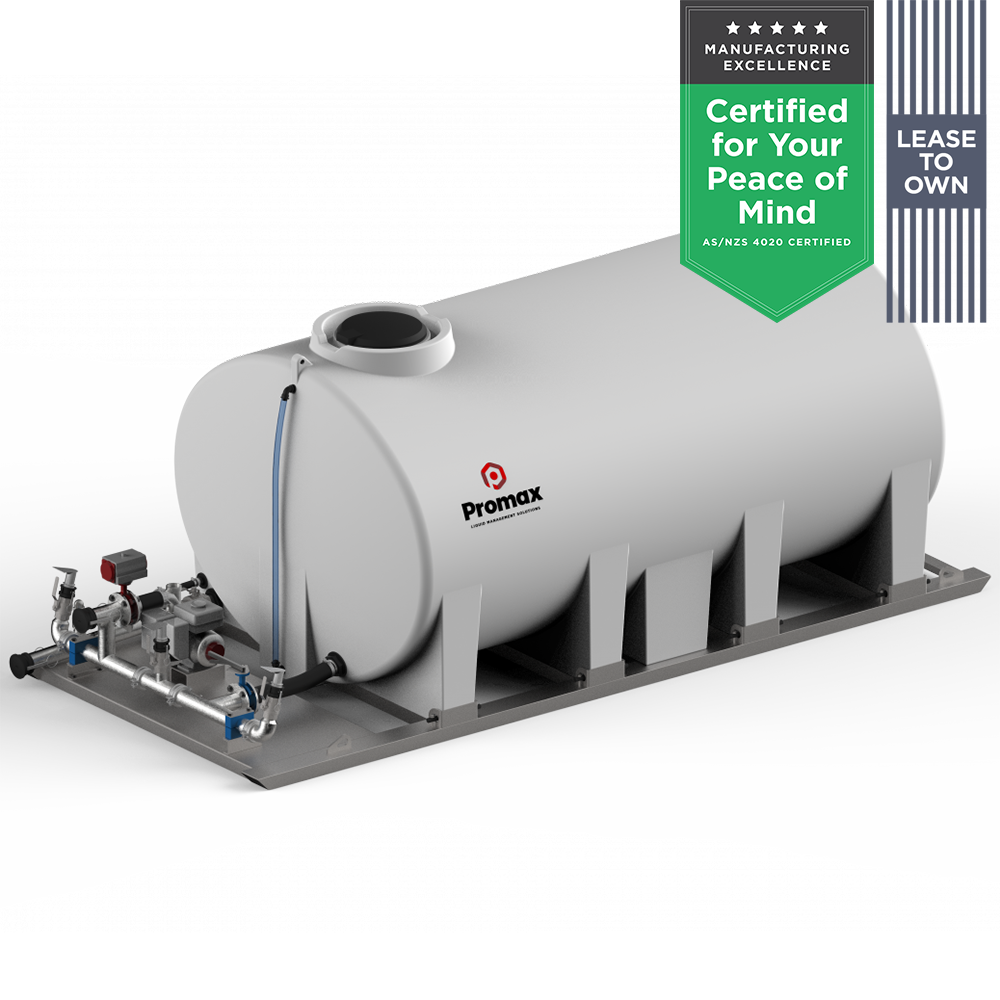

Promax Dust Suppression Unit 10,000 Ltr

Perfectly suited to large scale projects, forestry and civil roading, the Promax Dust Suppression Slip-On Units are built tough to withstand a lifetime of hard work and boast a huge range of functions to make your life easier.


  • 3" HONDA GX160 Semi-trash Water Pump - 1000 lpm, 28m max head.
  • 3” suction system with ball valve and camlocked inlet (for filling from dams, rivers etc.)
  • 3 x 2” rear batter sprays set by brass ball valves.
  • Spray bar actuated by 1 x air over air actuator.
  • 3” camlock pump in/outlet – for bulk water transfer & hydrant filling.
  • Water Level Sight Glass
  • 10 metre flexible suction hose with brass foot valve & strainer.
  • Fully Baffled with Rapid Ball Baffle System
  • Galvanised Steel Skid Frame with lifting eyes.
  • Galvanised steel pipework.
  • Sprays on roll groove and camlock fittings for full adjustment.


  • ​Washdown hose and reel.
  • Diesel powered pump.
  • Self loading legs.

Proudly designed, manufactured and supported in New Zealand. Need something extra? Contact one of our team on 0800776629 to discuss.

Please note: We recently completed an update of our product codes and descriptions. New codes are effective from 1 June 2022. For reference only, the old code for this product is: PMXTT10000DS


Code Description Length(mm) Width(mm) Height(mm) Weight(kg)
TTDS10000 Promax Dust Suppression Unit 10,000 Ltr 4800 2250 1950 950
