Industrial Accessories

Seismic restraints, flexible connections, flanges, manways, vents and welded PE pipework, designed to suit Promax engineered and industrial tanks. Factory fitted where it matters, or supplied for your contractor.

Seismic Restraints
Seismic restraints to BRANZ resilience criteria
Connections in galvanised or stainless steel
Designed for Promax tanks
Made in New Zealand

The fittings that make a tank a system.

Polyethylene tanks move: they expand with temperature and liquid load, and they flex in an earthquake. The fittings have to move with them.

Seismic restraints

Seismic restraints

Rated for Importance Levels 1, 2 and 3 on tanks from 1,000L to 30,000L, to BRANZ seismic resilience criteria, with PS1 available.
Factory welded

Factory welded

Spigot flanges, pipe stubs, vents and manways are welded into the tank wall at the factory, so specify them with the tank.
Flanges to AS 4087

Flanges to AS 4087

Stub spigot flanges from 40mm to 630mm in Table D, E and C (PN16), with galvanised or SS316 backing rings.
Flexible on every fitting

Flexible on every fitting

Rubber bellows and seismic expansion joints with threaded, Table D, Table E and ANSI ends protect against leakage and stress.
Seismic and restraint

Hold the tank where it stands.

Restraints, tiedowns and lifting hardware for tanks on engineered sites.

Seismic Restraints

Tank, base and steel anchorings

Seismic Restraints

  • Tanks 1,000L to 30,000L
  • Importance Levels 1, 2 and 3
  • PS1 certification available
View details
Stainless Steel Tiedown

Wind and shift restraint

Stainless Steel Tiedown

  • Adjustable to any Promax tank size
  • Holds the tank to a concrete pad
  • Non-corrosive stainless steel
View details

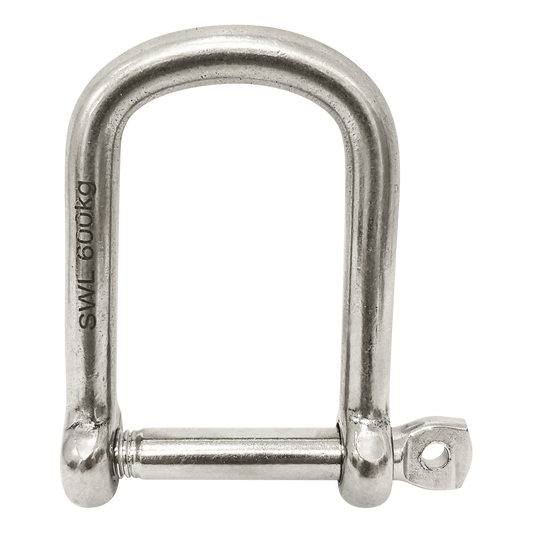

Shackle 600kg Stamped

Lifting

Shackle 600kg Stamped

  • 600kg rated, stainless pin
  • Four needed to lift 25,000L and 30,000L tanks
  • Minimum order four
View details

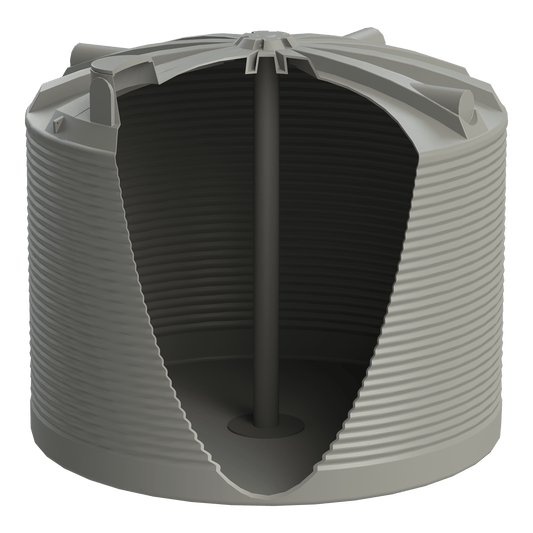

Snow Support Pole

Alpine sites

Snow Support Pole

  • Supports the tank dome
  • For high snow loading areas
View details
Connections and pipework

Welded, flanged and flexible.

Every fitting into and out of a polyethylene tank should be flexible, and every penetration welded. These are the parts that do it.

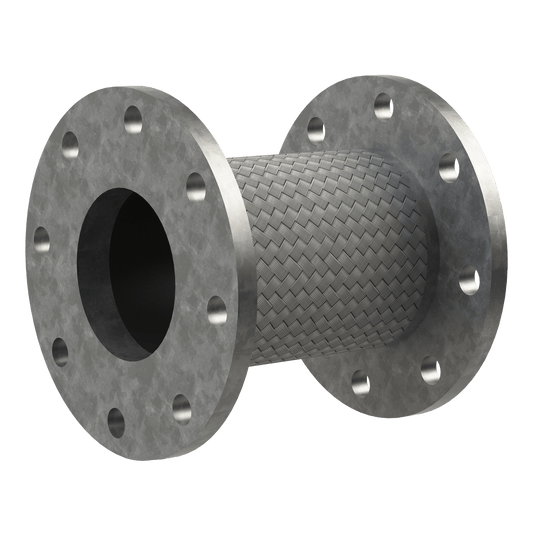

Flexible Connections and Expansion Joints

Every inlet and outlet

Flexible Connections and Expansion Joints

  • Seismic expansion joints and rubber bellows
  • Threaded, Table D, E and ANSI
  • Painted, zinc, galvanised or stainless backing rings
View details

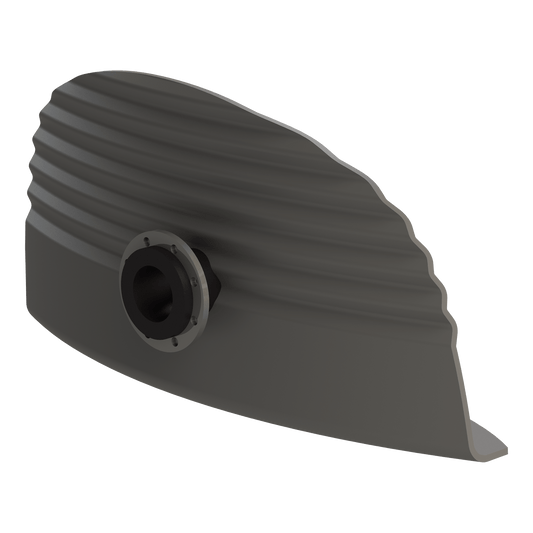

Stub Spigot Flange

Flanged connections

Stub Spigot Flange

  • 40mm to 630mm, Table D, E and C
  • AS 4087 (PN16)
  • Galvanised or SS316 backing rings
View details
Welded PE Pipe

Pipework terminations

Welded PE Pipe

  • Plain pipe stubs 40mm to 630mm
  • Welded into the tank wall
  • Shear band type connection
View details

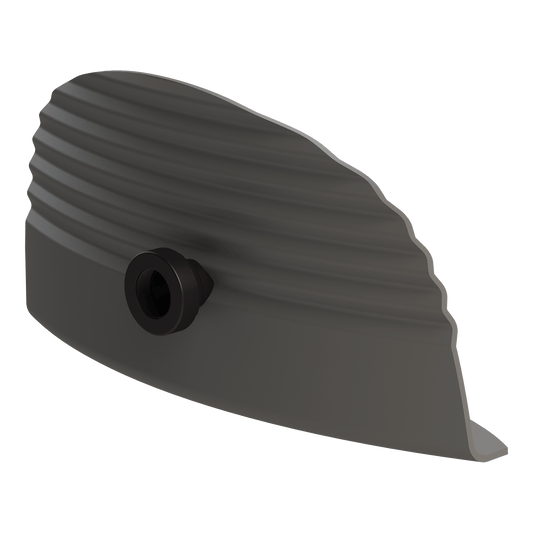

Spigot Adaptor Male and Female

Threaded connections

Spigot Adaptor Male and Female

  • Male or female BSP thread
  • 32mm to 110mm
  • PE, welded to the tank
View details
PE Tank Manifolds

Multi-tank systems

PE Tank Manifolds

  • PE100, 110mm to 255mm
  • Lugged butterfly valves per tank
  • Camlock and FENZ connections available
View details
Pipe Vent

High-flow tanks

Pipe Vent

  • 90mm to 160mm
  • Insect-proof mesh available
  • Welded into position
View details
Access and internals

Lids, manways and baffles.

Access points and internal plates for industrial and insulated tanks.

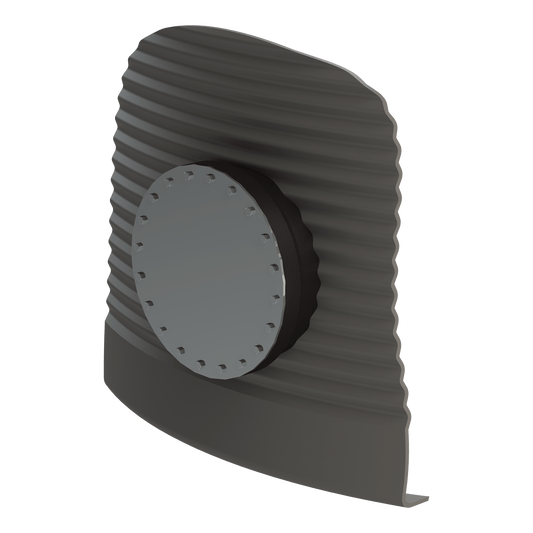

Sidewall Manway Access 630mm

Tank access

Sidewall Manway Access 630mm

  • 630mm diameter
  • Low-level entry or secondary access
  • Any orientation and height
View details

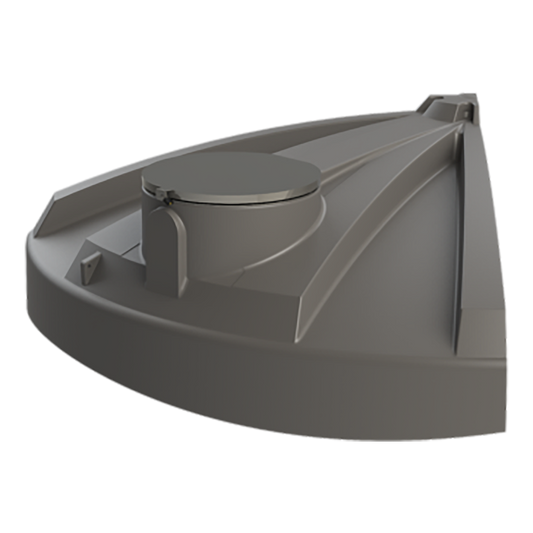

Stainless Lockable Tank Lid 600mm

Public sites

Stainless Lockable Tank Lid 600mm

  • Padlockable stainless steel
  • Sealed from dust and water
  • Hinged for safe access
View details

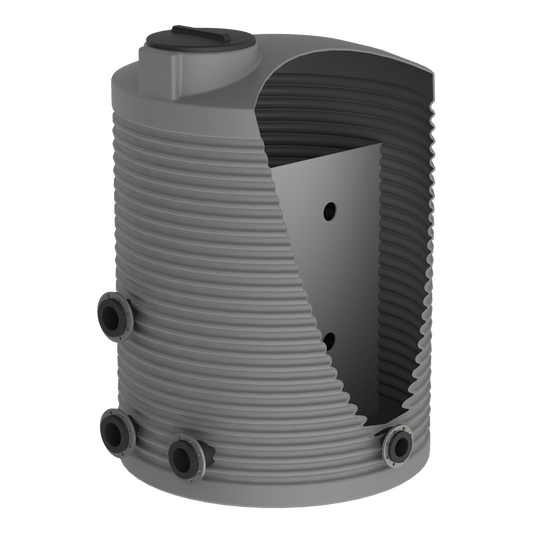

Internal Baffle Plates

Refrigeration plants

Internal Baffle Plates

  • Separate hot and cold zones
  • Solid or perforated
  • 1,000L to 30,000L, all insulated tanks
View details
Technical guide

Specifying tank fittings.

Polyethylene tanks move: they expand with temperature and liquid load, and they flex in an earthquake. The fittings have to move with them. Here is what to specify, and when.

Flexible connections on every fitting

Flexible connections and expansion joints should be used on all fittings into and out of a polyethylene tank. They safeguard against leakage and stress over time and are the seismic protection for the pipework. Promax supplies rubber bellows and seismic expansion joints with threaded, Table D, Table E and ANSI ends.

Welded penetrations

Stub spigot flanges with backing rings run from 40mm to 630mm in Table D, E and C to AS 4087 (PN16), in zinc galvanised or SS316. Plain welded PE pipe stubs cover the same range for shear band connections, and PE spigot adaptors give male or female BSP threads from 32mm to 110mm. All are welded into the tank at the factory.

Restraining the tank

Seismic restraints anchor the tank, base and steel to the slab and are rated for Importance Levels 1, 2 and 3 on tanks from 1,000L to 30,000L, with PS1 certification available. Stainless steel tiedowns are the simpler option against wind and shifting, adjustable to any Promax tank and fitted to brackets or the lifting eyes. Four 600kg stamped shackles are required to lift a 25,000L or 30,000L tank.

Joining tanks

PE tank manifolds join multiple tanks into one system with electrofusion and butt-welded PE100, flanged connections with galvanised backing rings, and a lugged butterfly valve to isolate each tank. Sizes run from 110mm to 255mm with camlock and FENZ firefighting connections available. Manifolds are designed with the tanks and cannot be retrofitted, so talk to us at the start of a multi-tank project. Promax supplies the manifold with full drawings for your contractor.

See the Bulk Water Tank Farm

Related reading

Seismic and Engineered Tanks
Heavy duty tanks these fittings are built for

Insulated Tanks
Where internal baffle plates are used

Rain Harvesting Accessories
Fittings for domestic and rural tanks

Silverhills Subdivision.

INDUSTRY: SUBDIVISION WATER SUPPLY
PRODUCTS: 2 X 30,000L INDUSTRIAL TANKS, SEISMIC ANCHORING, LOCKABLE LIDS, MESH VENTS, WELDED CONNECTIONS
LOCATION: NAPIER, HAWKE'S BAY

Challenge:
The elevation of the new Silverhills subdivision meant the town main could not supply enough pressure and flow to forty sections, so Eng Works Hastings needed a buffer storage and booster pump system in a public environment.

Solution:
Promax supplied two 30,000L industrial tanks certified to AS/NZS 4766 and AS/NZS 4020 for drinking water, fitted with seismic anchoring, lockable stainless access lids, mesh screen vents and welded connections. All compliance, no complaints.

Talk to us

Send us the drawing. We'll spec the fittings.

Tell us the tank, the pipe sizes and whether the site needs seismic restraint, and the team will come back with the fittings, factory fitted or supplied for your contractor.

Pricing, specs and delivery

The Promax industrial team

Kerikeri and Rangiora, New Zealand

  • Fittings designed for Promax tanks
  • Factory fitted where it matters
  • Drawings supplied with manifolds

Send your project details

Tell us the tank, the fittings you need and when, and the industrial team will be in touch.

FAQ

Before you enquire.

Fitting, retrofitting and pricing.

01Are accessories fitted at the factory?

Welded fittings, vents, manways, baffle plates and anti-vortex outlets are fitted at the factory, so specify them when you order the tank. Restraints, tiedowns, shackles, flexible connections and manifolds are supplied for your contractor to install.

02Can a manifold be retrofitted?

No. PE tank manifolds are designed alongside the tanks so the layout and connections suit the site from day one. Talk to us at the start of a multi-tank project.

03Which tanks do seismic restraints suit?

Promax seismic restraints suit tanks from 1,000L to 30,000L and are rated for Importance Levels 1, 2 and 3, with PS1 certification available. Slimline 3,000L and 5,000L tanks use the Slimline Seismic Bracing Set.

04Why are no prices shown?

Industrial accessories are priced with the tank and the site, so each one is quoted. Tell us which tank it is for and we will come back within one business day.
