Dust suppression

Dust suppression units, built for your trucks.

Slip-on, chassis mount and trailer set-ups from 2,000L to 15,000L, built in New Zealand.

2,000L to 15,000LBuilt to your specLease-to-own options
Made in New Zealand since 1992
Ball Baffle System as standard
10-year pro-rata warranty on tanks and frames
Lease-to-own options available
Three set-ups

Pick the set-up that suits your fleet.

Every unit is built to your spec. Pick a set-up and Hamish will quote it.

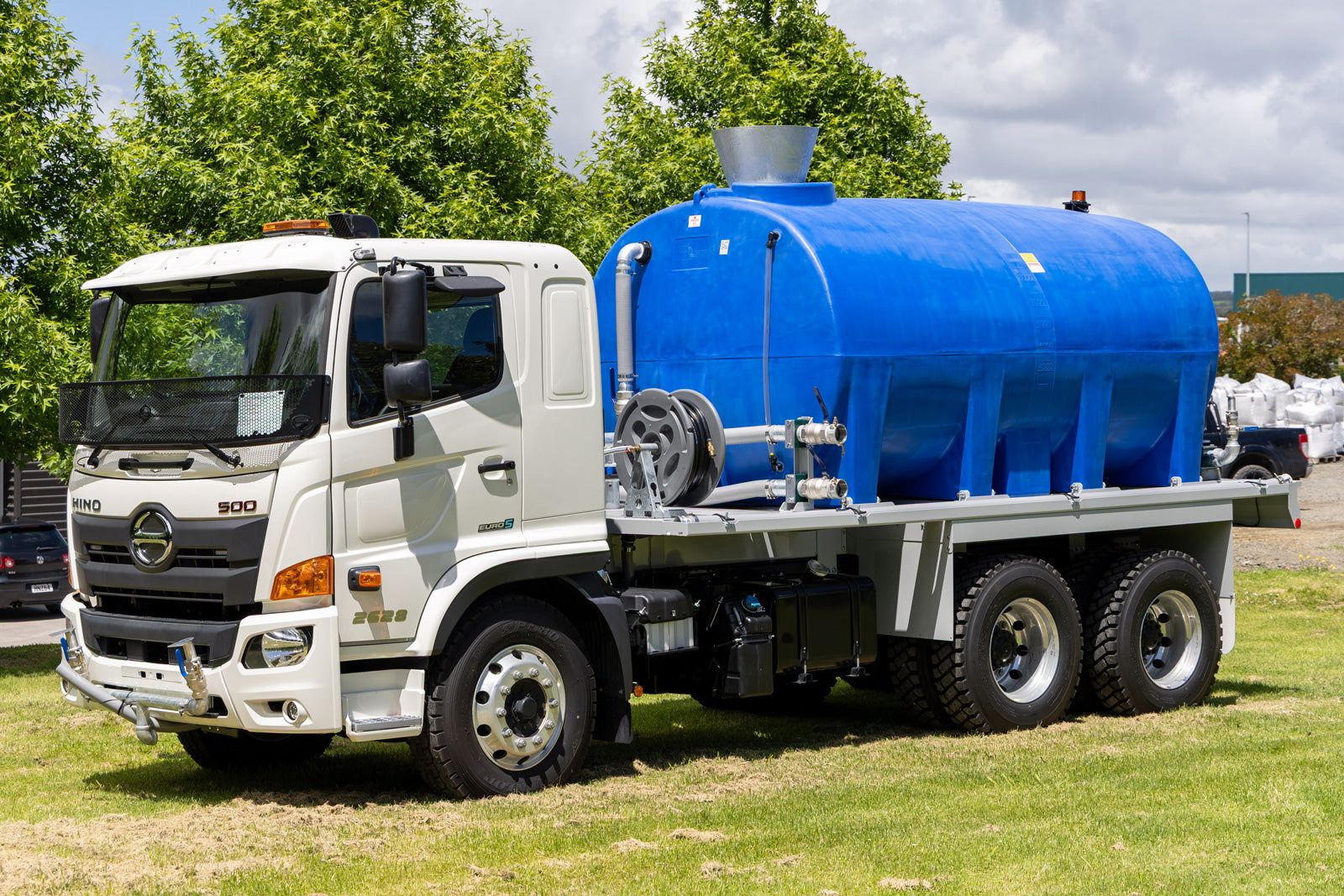

Promax chassis mount dust suppression unit on a Hino 500 truck
Our latest chassis mount build, on a Hino 500.

Chassis Mount

5,000L to 15,000L

Direct to chassis, with in-cab controls and front and rear spray bars.

See chassis mount units
Talk to Hamish

Need to keep the dust down? Let's talk.

Tell Hamish about your trucks and your sites, and he'll come back with a quote built for your fleet.

Hamish Strachan

Your civil contact

Hamish Strachan

Industrial and Civil Sales Manager

  • Slip-on, chassis mount or trailer set-ups
  • Built to your spec
  • Lease-to-own options available

Send Hamish an enquiry

Tell us about your trucks, your sites and when you need it, and Hamish will be in touch.

Slip-on units

Nine sizes, 3,000L to 15,000L.

Skid-mounted units that load onto your truck deck, each quoted to your spec.

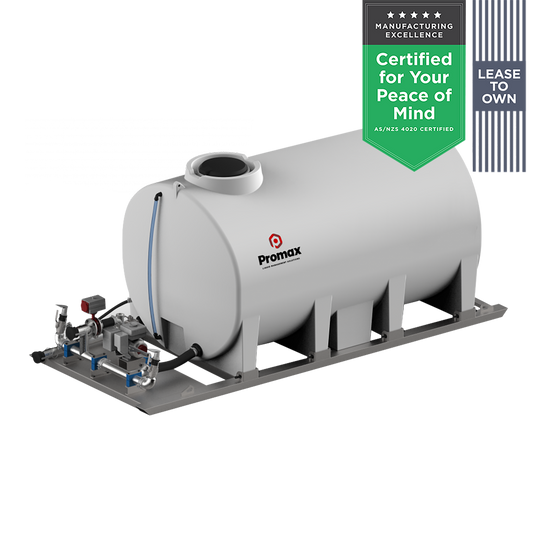

8,000L

Slip-on unit

  • 3" suction and camlock
  • 3 rear batter sprays
  • Self-loading legs available

Pricing

Quoted to your spec

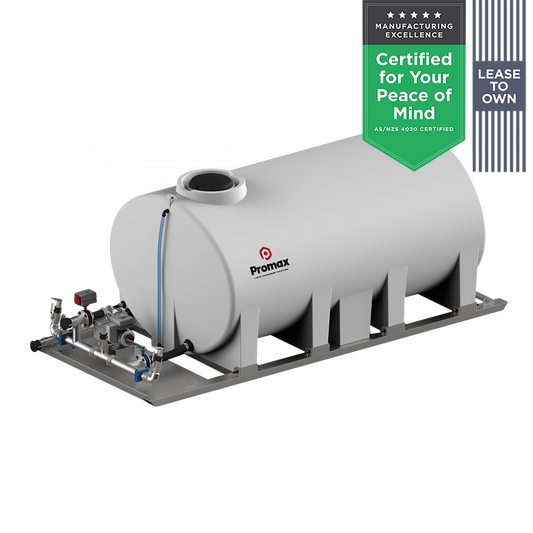

10,000L

Slip-on unit

  • 3" suction and camlock
  • 3 rear batter sprays
  • Self-loading legs available

Pricing

Quoted to your spec

13,000L

Slip-on unit

  • 3" suction and camlock
  • 3 rear batter sprays
  • Self-loading legs available

Pricing

Quoted to your spec

15,000L

Slip-on unit

  • 3" suction and camlock
  • 3 rear batter sprays
  • Self-loading legs available

Pricing

Quoted to your spec

Not sure which size?

Tell Hamish what trucks you run, and he'll recommend a size and quote it.

Every slip-on unit includes:

  • Honda GX160 pump, 1,000 Lpm
  • Rear batter sprays, controlled from the cab
  • Ball Baffle System and sight glass
  • 30m hose reel and safety beacon

Options include a diesel or hydraulic pump, front spray bar and dribble bar.

Options

Add-ons for your unit.

Fit these when your unit is built, or add them later.

Buying guide

Choosing a dust suppression unit.

A dust suppression unit is a water cart built for dust control: a tank, a pump and spray gear on a truck or trailer, so one driver can water haul roads, stockpiles and exposed ground. Every Promax unit is designed, built and supported in New Zealand, and slip-on and chassis mount units are built to your spec. Here is how the set-ups compare and what comes on them.

Where Dust Suppression Units Work

  • Roading and civil construction
  • Quarries
  • Forestry roads
  • Ports and log yards
  • Earthworks and subdivisions
  • Damping down stockpiles

Why Dust Control Matters

Dust reduces visibility for operators and causes problems with the neighbours. Quarries and civil sites can also have resource consent conditions to meet, so keeping dust down can be part of staying compliant. WorkSafe New Zealand identifies dust control as an important part of workplace health, so it is a safety issue as well as a nuisance.

The Ball Baffle System in Promax slip-on and trailer units steadies the water when you brake and corner, which is easier on the driver and the truck.

Matching The Unit To Your Truck

Water weighs about 1kg per litre, so a full 10,000L unit puts around 10 tonnes of water on the deck, plus the 950kg unit itself. Check your truck payload first, then pick the largest size it can carry comfortably, since more water means fewer trips to refill.

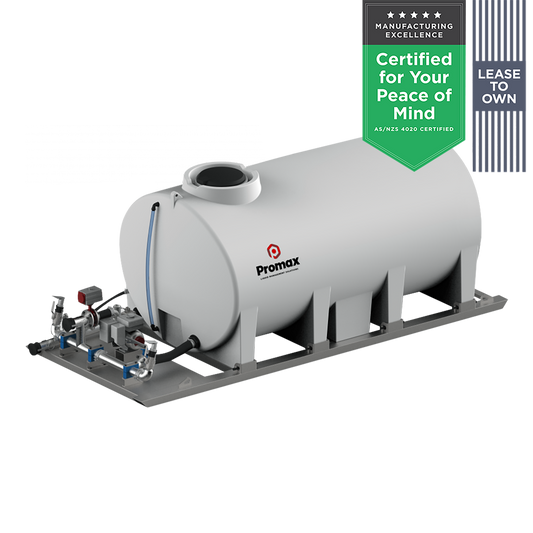

Slip-on units from 3,000L to 6,000L have a 2" suction system and camlock inlet and outlet, with two 2" rear batter sprays. From 7,000L they have a 3" suction system and camlock, with three 2" rear batter sprays.

Slip-On, Chassis Mount Or Trailer

Three ways to carry the water.

Set-upSizesPumpBest for
Slip-on unit3,000L to 15,000L (nine sizes)Honda GX160 semi-trash pump, 1,000 L/min, 28m max headTrucks that do other work when the unit is off
Chassis mount5,000L to 15,000LPetrol, diesel or hydraulicDedicated dust trucks, built to order
Trailer unit2,000LHonda GX120 electric start, 600 L/min, 32m max headA towable unit, so no truck is tied up

What Comes On A Slip-On Unit

  • Honda GX160 semi-trash pump, 1,000 L/min with up to 28m head
  • Suction system with ball valve and camlock inlet, plus a 10m suction hose with brass foot valve and strainer, for filling from dams, rivers and creeks
  • Rear batter spray nozzles with flow adjustment and 360 degree rotation, and a rear spray bar run from an in-cab controller
  • Camlock pump inlet and outlet for bulk water transfer and hydrant filling
  • Water level sight glass and the Ball Baffle System
  • Galvanised steel pipework and a heavy duty galvanised skid frame
  • 30m hose reel, safety beacon and four chain tie-down and lifting points

Options: diesel or hydraulic pump, front spray bar, dribble bar, self-loading legs (8,000L and up). The Sidewinder water cannon kit is also available.

Sidewinder Water Cannon

The EXM2 Sidewinder is an electric cannon with a radio remote. It turns 350 degrees side to side and 135 degrees up and down, and adjusts from fog to straight stream. It is great for damping down stockpiles and firefighting, and it cuts down on machinery moving around the site.

Built For New Zealand Sites

Six 13,000L chassis mount units

A quarry that must comply with its consents, and whose dust trucks were ageing, bought six 13,000L chassis-mounted units.

Read the case study

13,000L unit on an Isuzu FVZ1400

The South Island's largest port runs a 13,000L chassis mount unit on an Isuzu FVZ1400 6x4 for dust control, including its timber yard.

Read the case study

10,000L unit with a remote cannon

A 10,000L skid unit with a remote-control cannon lets the excavator operator add water to fill, freeing up the water cart driver.

Read the case study
FAQ

Before you enquire.

Set-ups, pricing, loading, freight and leasing.

Hamish Strachan

Still got questions?

Hamish StrachanIndustrial and Civil Sales Manager

01Which set-up suits my fleet?

Slip-on units (3,000L to 15,000L) are skid-mounted to suit your truck deck. Chassis mount units (5,000L to 15,000L) go direct to the chassis with in-cab controls. The 2,000L trailer unit has an in-cab radio spray actuator and hydraulic brakes. Not sure? Tell Hamish about your trucks and sites.

02Why aren't prices shown?

Every dust suppression unit is built to your spec, so each one is quoted. Tell Hamish what you're running and he'll come back with a price for your set-up.

03Can I load and unload a slip-on unit without a crane?

Yes, with self-loading legs, available on 8,000L, 10,000L, 13,000L and 15,000L units. They let the operator load and unload an empty unit from the truck without lifting equipment.

04Is freight included?

No. Freight is quoted to your site. Tell Hamish where the unit needs to go and he'll include it in your quote.

05Can I lease to own?

Yes. Lease-to-own options are available, and Hamish can talk you through them when he puts your quote together.
