Chemical and HSNO

Chemical & HSNO Tanks

Fabricated HDPE chemical tanks from 300L to 60,000L and bunded tanks with 110% containment, engineered in New Zealand for class 5, 6, 8 and 9 liquids under the HSNO Act. Compliant with BS EN 12573, with a WorkSafe Tank Design Compliance Certificate over 5,000L.

Custom Chemical Tanks
Compliant with BS EN 12573
Class 5, 6, 8 and 9 liquids under HSNO
Tank Design Compliance Certificate over 5,000L
Engineered and built in New Zealand

Chemical tanks built to the liquid and the law.

Every chemical tank is engineered and built in-house to the liquid, the volume and the site, and comes complete with fittings for connection on site.

Documentation for consent

Documentation for consent

Tank Design Compliance Certificate with WorkSafe records on every tank over 5,000L. Smaller tanks built to BS EN 12573.
Secondary containment

Secondary containment

Bunded options with 110% secondary volume for sites where a spill could reach soil, drains or waterways.
Material compatibility

Material compatibility

Tell us the liquid, concentration and specific gravity and the team confirms compatibility before anything is fabricated.
Engineered in-house

Engineered in-house

Designed and fabricated at the Promax factory to your site address for a hassle-free PS1, with a 25-year design life.
The range

Two builds, both to your specification.

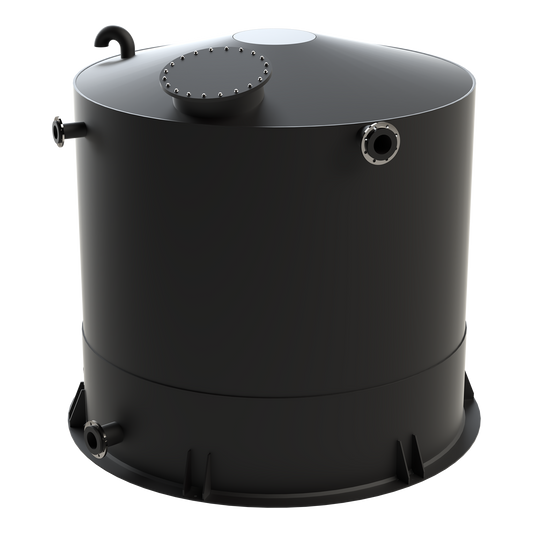

HDPE Chemical Tanks

300L to 60,000L

HDPE Chemical Tanks

  • Fabricated HDPE tanks for hazardous and agrichemical liquids. 25-year design life, compliant with BS EN 12573, bespoke sized for your site.
Quoted to your liquid and site
Enquire about chemical tanks

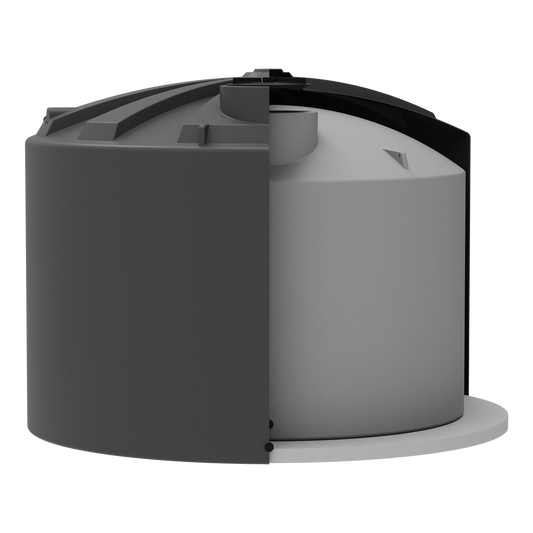

Custom Bunded Tanks

Up to 25,000L

Custom Bunded Tanks

  • Tank-in-a-tank construction. The outer tank holds 110% of the inner volume, satisfying council requirements for secondary containment. Liquids up to 2.0 SG.
Quoted to your liquid and site
Enquire about bunded tanks
HSNO classes

Which class, which tank.

The hazard class of the substance decides the tank and whether bunding is required.

ClassHazardWhat it means
Class 5OxidisersSubstances that support combustion in other materials
Class 6ToxicHarmful to people through contact or inhalation
Class 8CorrosiveDestructive to metals and organic tissue
Class 9EcotoxicHarmful to the environment and aquatic organisms
Technical guide

Storing hazardous liquids on site.

In New Zealand the storage of hazardous substances is governed by the HSNO Act and the Hazardous Substances Regulations, with WorkSafe overseeing compliance and regional councils adding requirements for secondary containment, setbacks from waterways and groundwater protection. Polyethylene does not rust and does not react with most liquids, which is why fabricated HDPE is the standard material for chemical storage.

Where chemical tanks are needed

  • Agrichemical storage on farms and at spraying contractors
  • Industrial storage of acids, alkalis and chemical solutions
  • Water treatment plants for chemical dosing
  • Food processing plants for process liquids
  • Any site with HSNO requirements for hazardous substance storage

Bunded or not?

Non-bunded fabricated tanks run from 300L to 60,000L. Bunded tanks run from 500L to 20,000L in the fabricated range and up to 25,000L as custom bunded builds, with the outer tank holding 110% of the inner volume. If a spill could reach soil, drains or a waterway, or your council requires secondary containment, specify a bunded tank.

Consent and compliance

Every tank over 5,000L comes with a Tank Design Compliance Certificate and WorkSafe records, which simplifies consenting. Smaller tanks are built to BS EN 12573 so the construction meets recognised engineering standards. All fabricated tanks carry a 25-year design life and are engineered to the site address for a hassle-free PS1.

What to send us

The liquid and its concentration, the specific gravity, the volume, the fittings you need, and the site. With those the team can confirm material compatibility, size the bund and price the tank with freight.

Related reading

Diesel and Oil tanks
Bunded diesel and waste oil tanks

Seismic and Engineered Tanks
Restraints and PS1 for engineered sites

Flexible Connections and Expansion Joints
Protect every fitting from stress

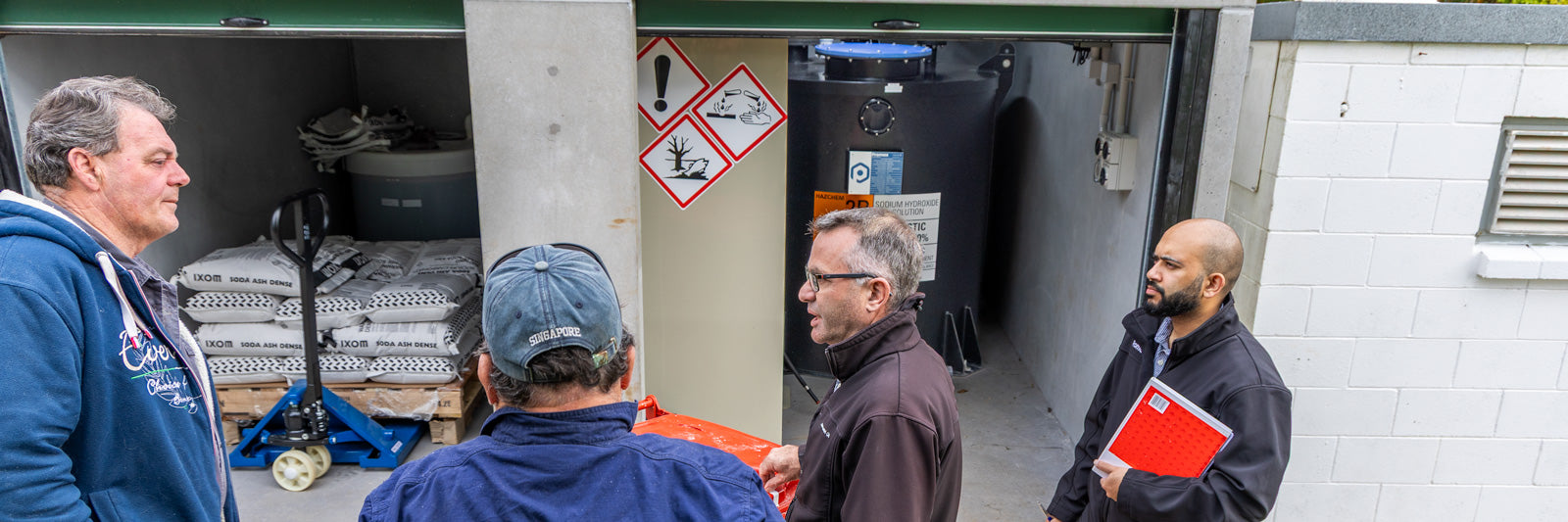

Ventia Caustic Soda Storage.

INDUSTRY: WATER TREATMENT
PRODUCTS: CAUSTIC SODA TANKS
LOCATION: KERIKERI

Challenge:
Ventia required additional caustic soda storage for the Kerikeri Water Treatment Plant within a confined footprint, while meeting hazardous substance containment and seismic requirements.

Solution:
Promax designed a fully bunded HDPE storage system sized precisely to the footprint, providing design, access port configuration and all documentation. The tanks were engineered for HSNO compliance, bunded containment and safe site delivery.

Outcome:
The engineered design was approved on first submission and delivered on schedule, giving Ventia a compliant, low-maintenance solution that removed corrosion risk and simplified operations.

“We engaged Promax to design and manufacture a caustic storage solution tailored to our site requirements. Their technical support, communication, and delivery performance were excellent, and the finished tank system has been reliable and fit for purpose.” TODD RIDDELL, VENTIA

Our Process

A defined, traceable process.

Every project follows the same five steps. This gives engineers, project managers and system integrators confidence that the vessel supplied will perform exactly as intended.

01

Consultation

We start by understanding the project, what liquid is being stored, the available space, seismic category, and installation constraints. Early collaboration removes guesswork and lets Promax take the ownership expected from a proactive supplier partner.

02

Design

The design team develops a tank configuration and installation plan. Certified engineers review and sign off plans, supplying PS1 documentation and material suitability reports for submission and approval.

03

Manufacture

Every tank is rotationally moulded in New Zealand using UV-stabilised, high-density polyethylene. Fittings, access ports, and seismic anchor points are all taken care of before the tank leaves site.

04

Documentation

Each project is backed by comprehensive documentation including CAD drawings, technical data sheets, compliance certificates, and installation guidance, so the paper trail is watertight for everyone involved.

05

Delivery

With manufacturing sites in Northland and Rangiora, delivery can remain fast and freight costs kept in check for industrial and infrastructure projects across New Zealand.

Talk to us

Tell us the liquid. We'll build the tank.

Send the team the chemical, the volume and the site, and we will confirm compatibility, size the bund if you need one, and price the tank with freight.

Pricing, specs and delivery

The Promax industrial team

Kerikeri and Rangiora, New Zealand

  • Fabricated HDPE from 300L to 60,000L
  • Bunded tanks with 110% containment
  • Compliance documentation included

Send your project details

Tell us the liquid, the volume, the site and when you need it, and the industrial team will be in touch.

FAQ

Before you enquire.

Compatibility, bunding, compliance and lead times.

01Which chemicals can a Promax tank hold?

Fabricated HDPE tanks suit most class 5, 6, 8 and 9 hazardous liquids under the HSNO Act, including acids, alkalis, agrichemicals and treatment chemicals. Tell us the liquid and concentration and the team will confirm compatibility.

02Do I need a bunded tank?

If a spill could contaminate soil or waterways, or your regional council requires secondary containment, yes. Promax bunded tanks hold 110% of the inner tank volume in the outer tank.

03What documentation comes with the tank?

Tanks over 5,000L come with a Tank Design Compliance Certificate and WorkSafe records. All fabricated tanks are built to BS EN 12573 with a 25-year design life and come with installation documentation.

04Why are no prices shown?

Every chemical tank is engineered to the liquid, volume, fittings and site, so each one is quoted. Send an enquiry and the team will reply within one business day.
